Build A Vacuum Tube Preamplifier

words and photo by: Telegraphy

  Rise your hand if you think digital sampling is superior in sound quality to analog vacuum tubes
..........anybody? Well for those of you that didn't rise your hands continue reading, all others lower your heads back down in front of your laptops, because today we're going to build a tube microphone pre-amplifier.

  Ah yes, the old debate amongst audio engineers and audiophile's. Does analog sound better than digital. The short answer (if you were to ask the almighty) - Yes it does sound better.  But why?

 Analog is defined as ": Something that is similar to something else in design, origin" which in our case of the "great debate" - analog vacuum tubes are replicating natures sound waves precisely as it is detected by our ear's. Digital on the other hand (keep your heads down laptop people) chops up the smooth natural sound into millions of steps. These steps makes our reproduction sound rough. Just as digital sampling uses "Solid State" devices to detect and reproduce sound. Though they are highly susceptible to distortion; "hollow State" on the other hand (which is referred to as tubes) are much more forgiving towards strong harsh sounds.

 The first vacuum tubes made (around 1902) were actually intended for radio reception and not audio amplification.  It wasn't until 1925 when the Western Electric Co. developed a complete electronic recording system, where by capturing, refining, and amplifying audio. This method employing tubes, revolutionized audio recording. For the first time in history, it was possible to tailor the quality of sound.
 Tube preamps are great pieces of gear to have in any home recording studio. There is no better option to obtain high quality audio from low level devices such as microphones and phonographs. So when I built a plate reverb (a low level device) I realized I was in a bind. "How am I going to get enough gain out of this plate reverb and yet still retain excellent audio quality", I thought to myself as I was driving to one of those big ticket item music stores (Ehheemm!! guitar center  ) I've always dreamed of having one of those expensive one or two tube mic preamps that retails for almost a THOUSAND DOLLARS!!! Seriously, if you can show me a capacitor or resistor that cost more then $20, I see no reason why these simple circuits with the minimal amount of components being used, should cost as much as a root canal. Anyways, I digress. Strolling through our un-named music store (hee-hee) I found a rack mounted mic preamp. Now my first though was, "Wow, a rack mounted piece of equipment"
I have a strong proclivity to when it comes to rack gear. It's neat and clean, always where you want it, and it just looks cool.
Looking at the very low, low price on the tag of this mic preamp ($50) How could I not resist. Being un-wise to spotting cheap equipment (They call that being young and stupid) my stupid behind bought myself a Behringer mic2200  Yes, some of you who are familiar with this so-called "tube preamp", can attest to it's crappy noise floor. In fact, others say it has a special knob which is marked "gain" but in reality varies the amount of noise gain. Powerhouse Mega from recordingreview.com forums stated that it only makes a good serving platter. And hey, it works great as a serving plate. My dinner parties turn out great after using the mic 2200 serving platter with auto gain noise knob. My friends are happier, drunker and I almost had a chance to have sex. Thanks Behringer mic2200.

Behringer mic2200 as a serving platter.
  So at this point I've decided to gut the insides of this skin crawling, abomination of a mic preamp and build my own using it's cabinet. So enough about me. Lets learn how to build a vacuum tube preamp. Shall we?
The following article is a step by step description of a home built vacuum tube  microphone preamp.
Lets examine the construction of a vacuum tube. As you can see from the cut-a-way view that it is physically hollow. Hence the term "Hollow State". Your basic run of the mill tube has two elements. 1) Cathode  2)Anode. This tube is called a "Diode". It's job in life is to allow current to pass one way and not the other. Much like those gates at the train station you pass though which are eerily similar to cattle fencing at a cattle farm. (It's a conspiracy man!!)  Between these two elements is a space or a vacuum. Tubes work on the principle of charged electron amplification. A small change in electron flow at one end of the tube effects a bigger change in charged electrons on the other end. This electron flow starts at the Cathode, flies through the vacuum and hits the Anode. Now in order for this effect to happen (The Edison Effect) the Cathode needs to be heated to the point where electrons fly off. A filament much like used in incandescent lamps is placed inside of the cathode to heat it up. This is what you see glowing inside of a tube and this is way it takes a few moments for the tube to turn on. Now we have flying electrons coming off of the cathode, it would be nice if we could put'em to good use. Like those holiday meal left-overs. You hate to just through them out - but you don't want to eat another piece of ham or turkey for another year........off load'em on your in-laws!

 The Anode or plate as it's called, is placed some distance from the cathode. Made out of metal or graphite, it is the final element in our tube. Electrons flying off of the cathode are attracted to the plate. The reason why these electrons are attracted to the plate is because of the higher voltage with respect to our cathode. We're talk'en high voltage folks. Nun of this 5 volt digital sissy pules (keep your heads down computer people) At least 200 volts !!

 Now that we have a conducting tube where electrons flow from the cathode to the anode, we can reproduce sounds from it by varying the flow. This is done by placing a third element in between the cathode and plate to act as a check valve. We shall call it - The Farnsworth Circular Modulated Multiplexed Coherer  Radiant Stimulator......just kidding folks, it's simply called a "Grid". It is used to control the electron flow and can be used to  modulate the plate voltage. In other words (our dubious digital dudes) a small signal voltage from a microphone impressed on the grid will vary the electron flow in the same manner and ultimately effect the bigger plate voltage (remember....BIG plate voltage).  Without the grid, we only can use this tube as a simple "current gate" or diode.

  Alright ! We know how a tube works. Now designing a accompanying circuit to make the tube work the way we want is a whole different ball game. Briefly put....

                                              Ionsonde Recordings presents..,..
                                          How to design a vacuum tube circuit.
( the analog deficient's version)

  This exclusive guide will teach the digital junky in four easy to follow steps, how to design and modify your pre-virtual reality analog vacuum tube microphone pre-amp. Learn how to....calculate bias, plate loading, cathode resistance and much MUCH MORE!!!  We're so confident that you will learn the art of designing a vacuum tube pre-amp's that we gave it a 30 day money back guarantee. If at anytime you feel that you haven't grasped the concept of analog reality, just simply send back your guide and 12ax7 tubes via particle beam transporter too...port 80 ip address

Step 1) Choose your tube. The most common audio tube is the 12ax7. So we will use this one. Now look up the spec's for this tube and you will find a really, really scary looking plotted graph. Yes the  type you dreaded seeing first thing in the morning on the chalkboard in physics class. This graph is a analog computer (Do I have your attention computer people?). Believe it or not this graph, which is called a "load line graph" is able to calculate grid voltage vs plate voltage, grid and cathode bias residences. Basically you can design a complete circuit just by drawing a few straight lines on this ghastly of a graph.

Step 2) Choose a plate load resister value. A good starting value is around 100,000 ohms. We will use 150 k ohm. Using simple Ohm's law, we figure out the idle plate current. This means the amount of current draw of our tube at rest - No amplification. Calculations are.... now computer people can follow along using their Windows Calculator application. All others use your abacus or slide rule. 200 volts / 150,000 ohms = 1.33 milliamps. Hey! I see 1.33 milliamps on the right side of this graph! Hey!!! I see 200 volt down at the bottom......Well, draw a line connecting this two points. This is our load line of a 12AX7 tube. That wasn't so bad.

Step 3) Now that we have formed a plate load line, we can use it to calculate values of other components or figure out different voltages and currents throughout our tube.  Most importantly we will calculate the cathode load resistance but first I have a secret to tell. I think you've noticed all of the animosity toward you computer people. Yes, I'm a little biased to when it comes to digital vs analog. And I'm sorry for all of the joke cracking. Us analog folks love your virtual ways (even though you can only count to 1). Yes I am biased. Biased to covering our next subject which is biasing our tube. It's alright, this will be just as easy as figuring out the loadline.

 Cathode bias - is the voltage present at the cathode which allows the tube to conduct and amplify in a set fashion. Picking any old biasing voltage from the plotted graph would work but our tube would run the chance of distorting our audio signal. We want the best audio quality. To do this, an amplification class known as "Class A" is to be used. Simply put "Class A" amplification in a tube has the best reproduction quality with the least amount of distortion. But, like all things in life there is a trade off. "Class A" isn't very efficient. Yes it's like driving a Bentley because you want to look good but when you want to race that annoying prick with his souped-up ghetto cruiser, blasting heavy base from their rattling trunk lid, your not going to do it! So we will sacrifice speed for class. For a 12AX7, a good all around cathode bias voltage (for Class A, don't forget) is 1.5 volts. Now back to our graph - look up the -1.5 volt curve and place a dot where the plate load line intersects. This is the biasing point. Now pay attention computer people. Draw or read across to the left hand side. You should read 0.5 mA. We have volt and now we have current. Both of these readings can be used just like our calculation of the plate load line. 1.5V/0.0005 A =  3000 ohms. This is the value of the resister off of the cathode. Draw a straight line from 0 volts and 0 mA through the bias point. This is our tube's cathode load line.

Step 4) PUT AWAY YOUR DAMN SLIDE RULER!! We are done. Now it's time to stop number crunching and start constructing.

 OK step back, take a breather. Drink some tea. That intense coarse study in analog computation is like a acid flash back to calculus class in high school. We're all done. Now it is time to have some fun with electronic components, wires and tubes.

The lone 12ax7 with
back lit LED's
Are you kidding me?
The design of this preamp is by Norman L. Koren  His "Spice preamp" is the design I choose for this project. Now, first thing on the list is build a power supply.

 Before I do that - a little bit more ranting about the Behringer mic2200 preamp. After discovering it's eccentricities, I opened up the cabinet only to find one (count'em one)12ax7 tube. I've also notice how the designers included a handy see through window on the front panel mounted just in front of the tube just to show off the fact that this is a "tube preamp". With only one resister and one capacitor on a printed circuit sub board where the tube is mounted, I was a bit concerned. Looking at the schematic diagram, I found a disturbing sight. The one 12ax7 tube in question, was only designed to be used as a cathode follower. What that means (computer people) that it doesn't amplify the audio signal what so ever. All it dose is transform a high impedances down to a low impedances. The amplifying is all done by cheap solid state op-amps. What a joke!

 Tubes as you know, require high voltages. To obtain several hundred volts means we need to build our own power supply. Running to your local radio shack isn't going to help or will it? Radio Shack offers an old school power transformer but it's output voltage is only 12 volts. That's OK, we can get around that. By using two of them connected back to back and using a few diodes and capacitors as "voltage doublers", we can obtain the required 250 volts.
by: dogstar.dantimax.dk
Ripping out the Behringers power supply which only puts out 48 volts (way to low  to power a decent tube) I managed to fit my own built power supply in the space left by the old one. I mounted the two Radio Shack 12 volt power transformers, which are coincidentally enough the right height to fit perfectly inside of the chassis. A small perf board where all the components of the power supply are mounted on, is just to the left.

The old power supply
 Warning:  This supply is capable of producing lethal high voltages. So be cautious when building and testing this power supply. (DO NOT POKE OR PROD WITH A SCREW DRIVER or paper clips for that matter) We know how computer people love using paper clips to hack things.

My own power supply (note the two Radio Shack power transformers)

 "Telegraphy"? "I know how Optimus Prime transforms. Is this the same as the Radio Shack 12 volt transforms?"...........silly computer people..........

  No that isn't how it works. Think of it as a voltage multiplier and divider. Inside of our 12 volt transformer is two coils of wire wound around a central metal core. One coil connects to the house hold mains or 120 volts A.C. This is the input or "Primary winding". The second coil is the output or "Secondary winding". This secondary has a unique property where by however many winding's there are, determines the amount of voltage present. The more winding's - the more voltage. The least amount of winding's - the lower the output voltage will be. It steps up or down the house main voltage, all done by the ratio of primary winding's too secondary winding's. So the first 12 volt transformer; the primary connects to the 120 v house mains and we get 12 v on the secondary where it is sent to a circuit to convert it from 12 volts A.C  too 12 volts D.C.. The second transformer's secondary winding (remember - back to back) is connected to same secondary winding of the first transformer. So through ratio and proportions, the primary voltage of the second transformer goes back up to 120 volts. Hard to follow and strange in design but it works. If it's ugly or atypical and it works - just have faith in it.  So now we have 120 volts A.C. coming out of the primary winding of our second transformer. At this point we can not simply apply that to our tubes. Like a small child  tasting Castoria for the first time, our tubes won't take well to that. They need D.C. voltage. So the power supply is fitted with a circuit that will convert the 120 v A.C. to D.C. (no not the band!..go back to your onion routers) A few silicon diodes does this job perfectly. They only let the alternating current pass through one way to produce a pulsating D.C.. Next some capacitors are needed to filter out the bumps and ridges left by the diodes to turn it into pure D.C.. At this point we have 120 v D.C. Just about enough voltage required for our tubes but we want more power! The voltage can be doubled by using a special circuit called a "voltage doubler". This circuit uses a combination of silicon diodes and capacitors to double the voltage to a higher level. But of course with everything in electronics, there's a trade off. Sure the amount of voltage goes up but that the same time the current handling capability goes down. In other words, our power supply puts out 120 volts D.C. with 500 milliamp current handling capability before using the voltage doubler. After the voltage doubler, the voltage goes up to 240 volts but the current drops down to 250 milliamps.  This means we have to be careful how many tubes we can use with this power supply.

  With 240 volts ready to use, we can now start on the tube amplifier itself.  As you can see from the schematic diagram below, the pre-amp I decided to build has quite a few components. Most of them are used has ether filtering out high frequencies generated by the pre-amp itself, or used as a feed back network to control the amount of amplification. But keep in mind, the basic theory I covered earlier on how to design a tube using a loadline is the same and can be seen here. You probably noticed by now that there is one input and one output - you've guessed it! This a mono pre-amp. So If you want stereo, you need to build two.

 Taking the grand tour of the pre-amp; our first stop(if you please direct your attention to the left, ladies and gentlemen)  is the phono input. R1s, R1g, and C1g make up a filter network, while R1gs is the grid stopping resistor. What is a "Grid Stop Resistor" you should ask? Well, Johny a grid stop resistor works in conjunction with the input filter network to stop any high frequencies parasitic oscillations. Ha, ha! In other words Johny, our tube likes to oscillate on it's own. The grid stop - stops it from self oscillating. As you can see connected to the bottom  and top of the first tube is the familiar cathode bias resistor R1c and plate load resistor R1p. C1m is a negative feed back capacitor. This also controls the amount of amplification and insures the tube doesn't break into self oscillation. (Now if you shall follow me over to the next capacitor. Watch your step, please) C1p is called a coupling  capacitor. It's job is to transfer the amplified audio energy from the first tube, over too the second tubes grid.....continuing on!.... The second tube operates just like the first, it just amplifies the signal even more. (And finally, we conclude our tour with) The third and final tube. This called a"Cathode Follower".  Transforming impedances is the name of it's game. It takes the high  impedance from the plate of the second tube and transforms it to a lower impedance without sacrificing gain. You might notice the output is coming out of the cathode instead of the plate. That's why it's called a cathode follower. The last components are feed back and filtering circuits. (Tours over - please visit our gift shop on your way out)

Point to point wiring.

The traditional way of constructing a tube circuit is to use point to point wiring on a tube socket.  By all means, it's a good time tested method of construction. For a stereo pre-amp your going to need three 12AX7 tubes. Each of them can be mounted horizontally, side by side.
Tube socket brackets
Neatly mounted.
 To mount those tubes, I had to fabricate my own tube socket brackets. Made out of 1/8 inch thick aluminum sheet. One thing the Behringer engineers did do well is the back connector interface board. Well done!..........but I can't use it. So I ripped it out and reinstalled all the connectors to the back panel.

  Oh yes baby, we're at the home stretch. Now all needs to be done is connect the back connectors to the tubes. Install all three 12AX7's and plug in the A.C. cable for the initial "Smoke Test". Once again, do I have to explain everything computer people......hum. A smoke test is the first time a home built piece of equipment is powered up. If you find no burnt fuses or burnt components after the power switch is turned on - then it's a successful build. Oh, also if anytime during the test you DON'T see any smoke leaving the unit.....Thumbs up dude!!


Un-soldering the connectors
Removing the back interface board.

Useless board removed.

 As an added touch, I improved upon Behringer lackadaisical attempt to justify a working tube. It's back lighting with a solid state LED's was ridiculous. So I put in an old school incandescent  light bulb. Ah yes, a nice warm light to remind you of the warm sounds that comes out this pre-amp.
Kids, you might want to ask your parents what a incandescent light bulb is.
Real tubes light up.

  Let talk about tubes before I close out. Yes I know, I discussed tube theory up the wazoo earlier but I want to cover what type and where you can find tubes. Remember, you can't go wrong with N.O.S. (new old stock) tubes. They might be dirty, covered in dust or god knows what, but they work almost like the day they were born. I've had great success with these new fangled Russian made 12AX7's tubes. Their easily found on Ebay for as little as $15 each. Another thing to consider when purchasing tubes is when your project requires several of them, always buy "Matched Pairs". These are tubes that have been dynamically measured so that each matched pair conduct evenly between each other.
Well, hope you learned a thing or two about analog electronics. Hey it's fun and you get knocked on your @$$ with high voltage......Just kidding folk's. Be safe out there in the real "analog" world. And if I offended any computer people. I'M SORRY! Your just to easy in the analog world.
Digital? Any idiot can count to "1"
                                              Bob Widlar

I like electron tubes!

iono-20 Requiem


track listing:

01: Requiem.............................................9:33 min

02: A Solid Liquid....................................9:41 min

03: Stealth Camp.....................................8:35 min

04: In And Out Of A Dream State...........8:33 min

Just in time for Halloween. "Requiem", sounds to bring up the spirits in this transition season. The leaf's are leaving the trees from where they were born, and the day's are getting shorter. This is the time for non-actively, where dreaming gets longer and more lucid. Something about the dark season that brings alternative realities into your sleep. And this is just the beginning.

 Telegraphy summons spirits of dub and techno using colorful sounds and echos in "Requiem"

download album

Smoke And Mirrors (Ann Arbor Hash Bash 2015)

words, photo, and video by: Telegraphy

The first Saturday of April is usually set aside for us to receive numerous contact buzzes. The wafting smoke clouds at the Ann Arbor Hash Bash  was thicker then usual. This years crowd on the University of Michigan diag, was larger than in past years. All thanks to the celebrity appearance of  cult movie icon Tommy Chong of "Cheech and Chong" fame. The crowd was so smoke saturated that your's truly wasn't able to make it up the steps to where all the speakers were soap boxing. Of coarse as usual John Sinclair made his appearance by jamming with Ann Arbors famed guitarist Laith Al-Saadi.

 I kept sensing that something was different this year. I roamed around the outskirts of this massive crowd, smoke billowing from inside, outside and around the crowd. As the white smoke shimmered in the early Spring sun light, I noticed the lack of Ann Arbors finest. I fact I only saw two police officers the whole time I was there (escorting one young man out of the Monroe Street Fair). But what got me was the fact that young people (eh hem, younger than me ) came out to see their hero dawned in green plastic fake hemp leaves and conveying the same stoner humor as he did in "Cheech and Chong". Yes Tommy Chong enjoying royalty satus, signed photos, albums, received the city of Hazel Park's key to the city (then passing a joint to city leaders) he was followed everywhere by young pot heads. Wow! John Sinclair, move over.

 Besides no cops and Tommy Chong, I was scratching my head figuring out why this years rally seemed awry. After the fan fair of the Hash Bash was slowing down for the day, I made my way to the Monroe Street Fair. Again something didn't seem right. After making my rounds of the venders who were peddling their brand of pot accessories: rolling papers, rollers, pipes, bongs; you name it they had a one stop shop for the eclectic stoner. Even in the back corner, a band of straight business students were selling brownies (non-tainted brownies). Pushing away tufts of smoke like tall weeds in a field, I meander around colorful people who were shoulder to shoulder in groups of small or large smoking circles. Finding my way around, I kept bumping into hippies selling hand crafted jewelry. Displayed in old leather suit cases, they quickly set up shop where ever they could find an open patch of ground (which is nearly impossible). "Huh", I thought to myself as I bumped into yet another peddler. Only this time I thought I was transported into the past. This business savoy man must of been a relative of a 1940's cigarette girl. With a small table strapped on him, this gentleman gave free samples of smoke. Rolling a splif for you. Now that's service.

   At this time the contact buzz had warn off and my sense of logic slowly came back. Leaving to go home I walked passed by Tommy Chongs swank black traveling bus, with included catering chief standing by with bar-b-q'ed goods. In front of his bus was yet another peddler, selling hemp necklaces hung off a single rope strung along the side of a truck. Young girls gather joyously to look at these organic body ware."Well", I said with a assured tone of voice, "Hash Bash is in business - The business of commercialization of weed".

    That's what was different this year.



Iono-19 Infernal Convolution

words, cover art and sounds: Telegraphy

01: Infernal Convolution ..........................6:20 min

02: Hearts, Made In Detroit.......................8:49 min

03: When Sounds Are Meaningless...........6:24 min

04: Distorted Reflections ...........................7:04 min

download album

 "Infernal Convolution" is certainly a release that can lift up a heavy heart with it's melodic synths and echoed drones. Warming us up from a long cold winter season, Telegraphy soothes us in red warm colored splashes of chords deep down to the core. A four track E.P. that starts off with it's titled track which beckons the awakening from the winter hibernation. Curiously familiar melodies, the listener just can't quite put ones finger on. "Hearts, Made In Detroit" and "When Sounds Are Meaningless" has it's own unique qualities that for some reason or another we've all heard before. Closing out with "Distorted Reflections", a dub laden techno track that high-lights Telegraphy's D.I.Y. audio gear know how with heavy metalized sounds of his harmonic reverb.

Build A Mixing Bowl Harmonic Reverb

Words, photo,and sounds by: Telegraphy

Reverberation is the most common and fundamental form of audio effect. This natural occurring effect has audio engineers painstakingly devising better ways to be able to harness natures "audio plug-in". Whether  it's with software or hardware, one thing is certain. Mimicking nature is hard work. With all of today's advanced software reverbs out there, you still can not beat the hardware version.

  A while back I wrote an article describing how to build a D.I.Y. Plate Reverb The response I received from the D.I.Y. community  regarding this article was beyond my wildest dreams. I had no idea there was so much keen interest in hardware based effects out there. That same interest which got me started building the plate reverb, (more recently) persuaded me to take that very same concept and bring it to a whole new level. Taking advantage of a well known side effect all stringed instruments suffer from (wanted or not) a condition known as Sympathetic Resonance would become the foundation of my Mixing Bowl Harmonic Reverb.

 Mixing bowl ? More on that later.

 Before we begin, one has to understand what makes a plate reverb....Well, reverberate. Quoting from D.I.Y. Plate Reverb
        The concept of a plate reverb is quite simple. An electromagnet, like the one found on a audio speaker, is directly or indirectly coupled to the center of a piece of sheet of metal. Audio from a sound source is fed into this electromagnet (voice coil) which will physically vibrate the piece of sheet metal (plate). These audio vibrations are echoed many times, echos which are in fact persistence of audio. The amount of persistence (reverberation) is determined by  the physical characteristics of the plate. These characteristics many include  length, height, and stiffness of the piece of sheet metal. Once reverberation has been set off in the plate itself, it then needs to be detected. This is accomplish by directly or indirectly coupling microphones to the plate. The micophones pickup the reverberations and sends them back to to be mixed  with the original "dry" audio.
 Now that we know how it works, let's take it to a higher level. Keeping this concept in mind, let's swap the plate with a pair of ordinary kitchen variety salad mixing bowls.......Not satisfied enough? O.K., we'll tie in between them, old used base guitar strings. This will produce some exciting harmonic reverberations. Yes I love excitement. That's why I have my nephew leave lego parts by my bed when I wake up in the morning. Bear foot of course. Exciting !!!  So, why use base strings? The strings act like frequency amplifiers. We can pick and choose what portions of the audio spectrum we want to enhance by way's of using different tuned strings. It works like this... The base strings are acted upon by sympathetic resonance. This condition is best described as when a loud sound directed toward a stringed instrument (ie.guitar or piano) it's strings will vibrate along with that sound. The most familiar exploit is singing into a guitar and hearing it's strings sing back at you.

 The following article is a step by step description of a home built harmonic reverb.

 Step 1 :

  The cost of building this reverb was around  $100. All materials needed (excluding electronics) were obtained at my local Lowes home hardware store. Electronics on the other hand, were from RadioShack.
materials needed

Some of the parts needed for this project were made in house. Having basic machine shop tools makes a big difference. If your not fortunate to have facilities to make your own parts, don't be afraid to ask your local Ma and Pop hardware store clerk on how they can improvise making parts for you. Why Ma and Pop hardware stores? Because, they have more experience and to put it simply: THEY HAVE TIME TO SERVE YOU!!

  The mixing bowls I purchased at my local Salvation Army second hand store. One thing you can count on at these stores (besides used underwear and soiled bed mattress) is having a great selection of kitchen gear. Perusing through the kitchen isle, a man feels out of place. Woman instinctively know your up to no good - Especially if your tapping each and every single pot and pan with your finger and then bristly putting it up to your ear ( just to hear how they vibrate) . It's just a hint for woman that this man isn't cooking quiche for dinner tonight.
The used base strings I "borrowed" from my brother who plays base guitar in his band "Air Base Guitar With No Amp Listening To Deathmetal"  Why base strings? I wanted this reverb to have better resonance down low. The small size of it's construction prohibits lower frequency response. To alleviate this problem, thick strings that resonate well at low frequencies are employed. Yea, we'll get you new strings one day bro. Your not using them now. Right?


                                                                 Let the construction begin.

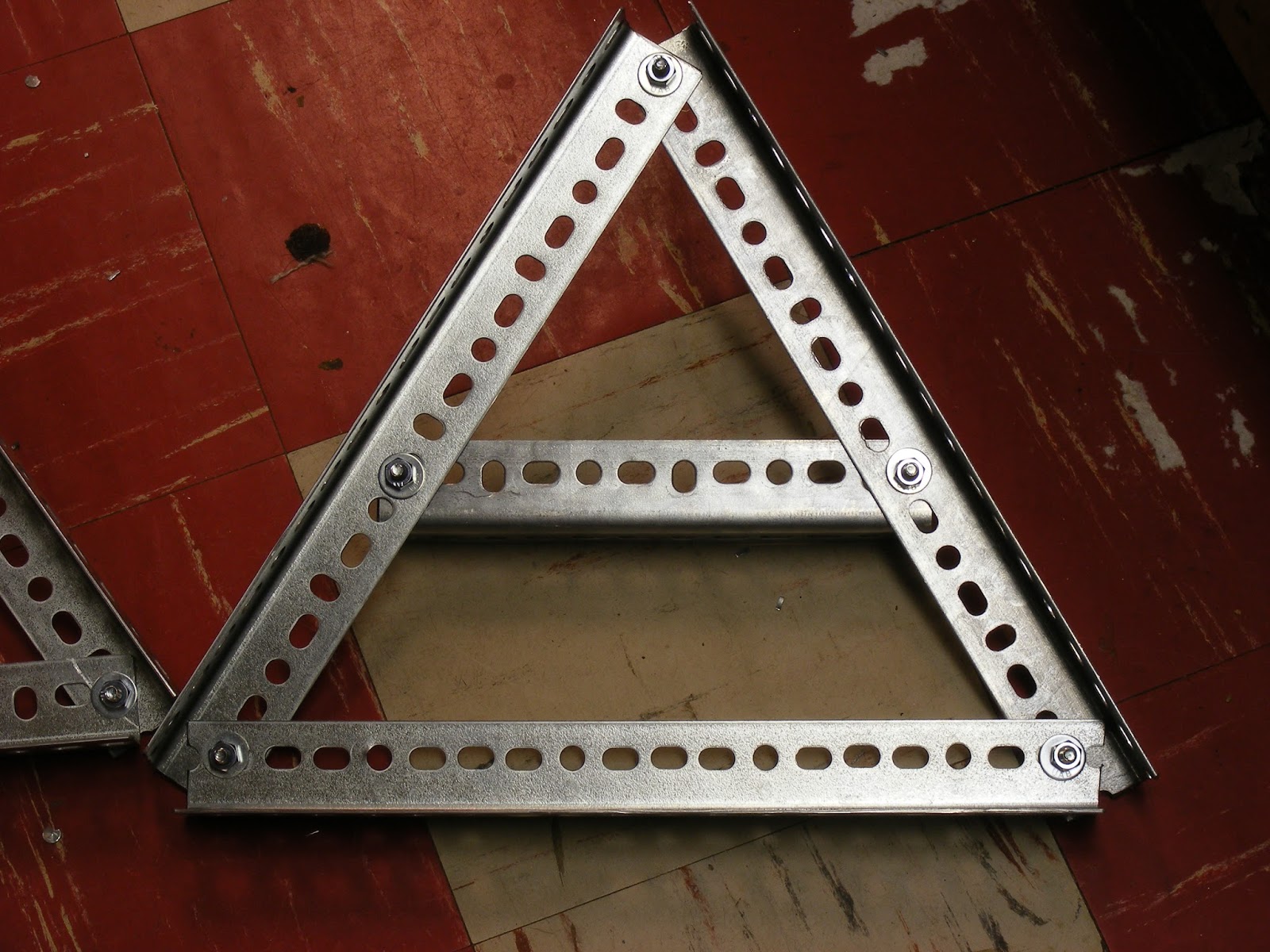

 Step 2:  Cutting the perforated angle iron into six 13 inch lengths plus two 9 inch lengths. Bolt them using 1/4-20 nuts and bolts. These measurements are somewhat critical as the points of the triangle has to clear the diameter of our mixing bowls. I this case it's a 8-1/4 inch diameter bowl. As for the three horizontal spreaders; I search high and low for an affordable alternative to which you would find in the metal stock section (they really rob you with highly priced "cheap" metal) So I found myself in the shelving and closet isle, because I have a closet full used close bought at Salvation Army store. And it's messy ! Looking around, I couldn't help but notice the 6 foot metal pipe used for closets. Priced at $9, this was 70% less then what you would find in the metal stock isle. Fantastic !
Every band has a pyramid on their album.
This should be one of them.

 Now before we strap on those mixing bowls to the triangles, we need to punch some holes through the bowls. I used a 3/16 sheet metal punch but you can use the good old fashioned drill. Six evenly spaced holes along the top lip and one big 1/2 hole down in the center of the bowls base. Now before you go and mix someones salad - Tune those base strings  with homemade tuners.

 A 1/2 inch aluminum rod kept rolling under my foot. Thinking it was a safety hazarded, I cut it up into six 1-1/4 inch sections. "There, now I have six safety hazards" " Wait a minute! I can tune base strings with these. Just drill and tape 8-32 screws into them and make a through hole at the other end.
Holes punched in bowls.

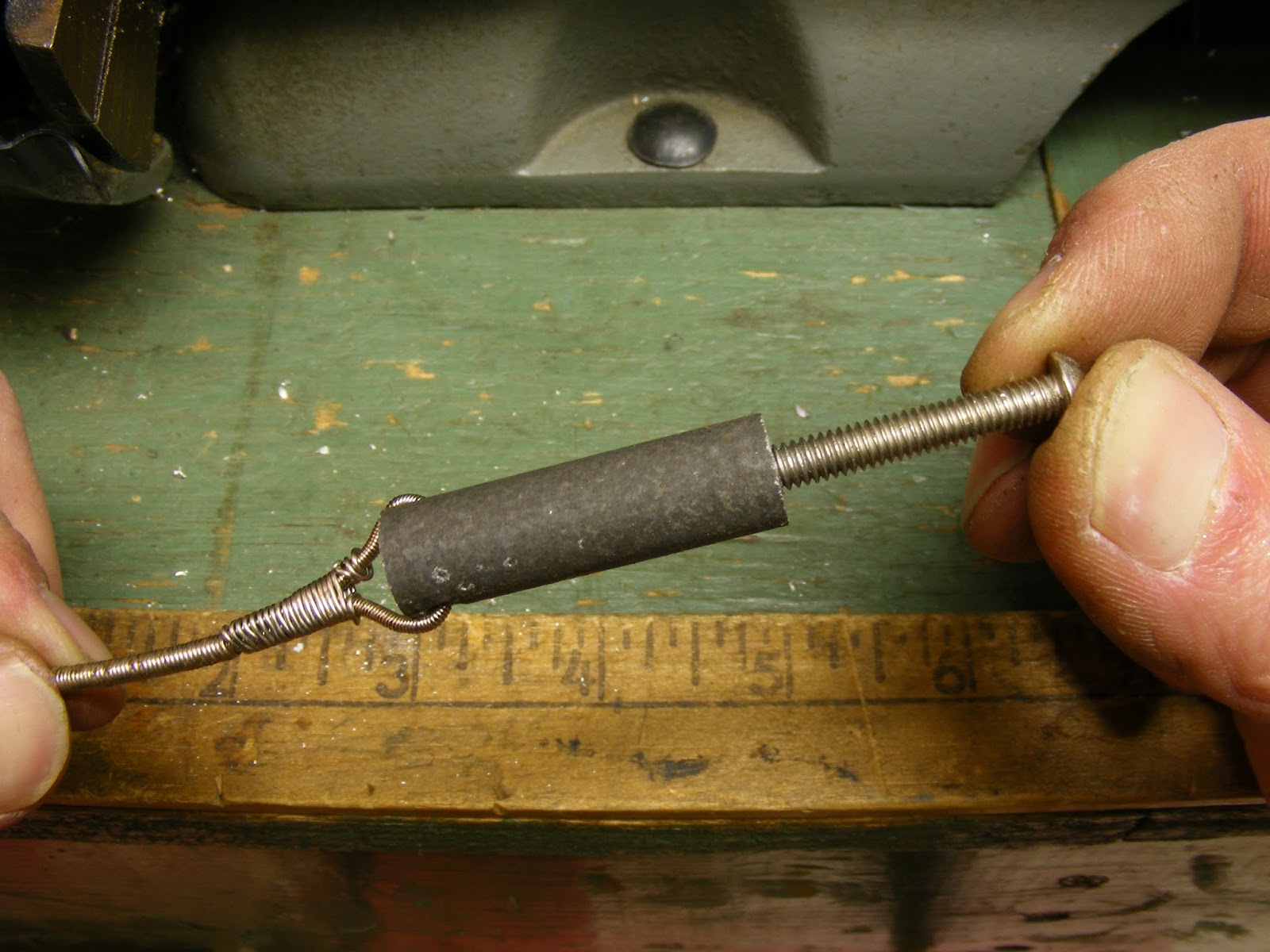

Lashing a base string through the hole at the other end of the tuner and then doing the same at the mixing bowl holes located around the lip. We now have the main component of the Mixing Bowl Harmonic Reverb. You can use as little or as many strings as you choose. Just keep in mind the tension of the strings will have to be spread out around the circumference of the mixing bowls evenly. Equal tension is what we're aiming for. I just inherently went for an even number of six. Because - Well because my brother had six.


The finished tuner

Attached bowl
Pulling it taut!
Step 3: The reverb is starting to come together. Time for us to kick back, have an adult beverage ( under age folks please drink your Ovaltine) Reviewing on what was built :
 1:   Super structure made with perforated angle iron and closet tubing.
 2:  Homemade tuners made from aluminum rod for tuning the base strings.
 3:  Lashing base strings to tuner and bowl
 4:  DRINK ........Why? Because no good project ever started with a bowl of salad! (no pun intended)

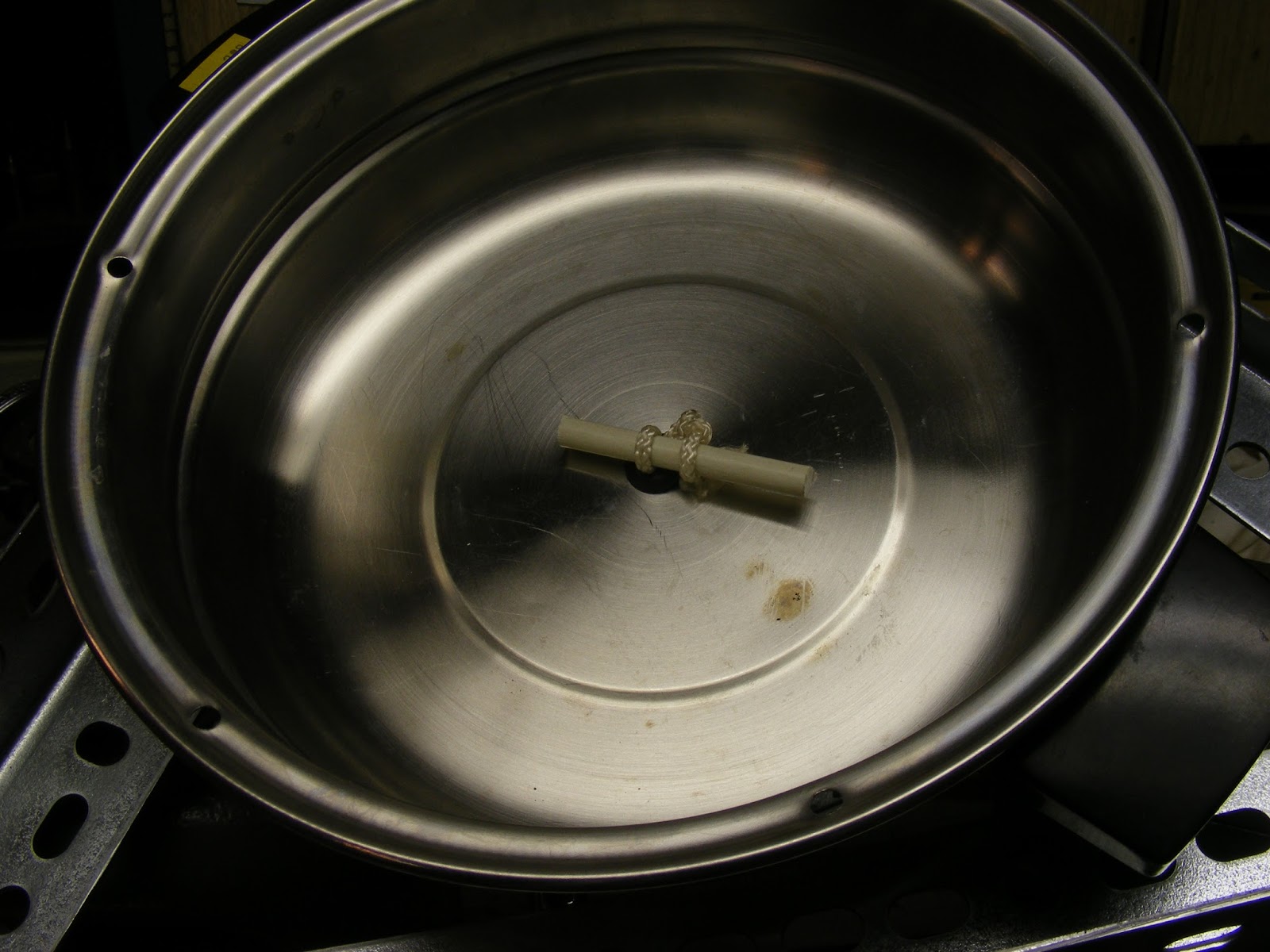

  Now the tuner(s) attaches to the bowl with the 8-32 screw running  through the holes punch around the lip of our mixing bowl. When all of the equally length strings are lashed to the other bowl, it is then time to attach both bowls to the triangles. This is done by using a method my father suggested. Threading hefty nylon cord through the hole drilled in the center of our mixing bowls,the nylon cord is wrapped around a dowel rod to keep it from slipping back out. Use nylon or some other material that's taut and won't stretch as much. It's really annoying having to re-tune your base strings every minute because of a stretchy cord.

Now we're getting somewhere
Step 4:  Oh, you might have noticed that both mixing bowls do not look the same......I lied...one of them is a sauce pan. Sorry mom !

 Beyond being a bad boy and not knowing the difference between a fork and a spoon (Spork) , we have something that resembles a Mixing Bowl Harmonic Reverb. After struggling to slip our 32 inch closet metal tubes in place with all of the tension provide by the base strings. It is now time to transition over to making a transducer.

 Around here, we use good old fashioned car speakers as our transducer. Why? Well for one, I'm dirt poor and can't afford a $20 audio surface transducer and second, I have tons a old speakers just laying around (I'm a man - We keep the stupidest things)  So how do you intend on using an old Chrysler car speaker from the 1970's ?  For that I will once again be quoting from D.I.Y. Plate Reverb

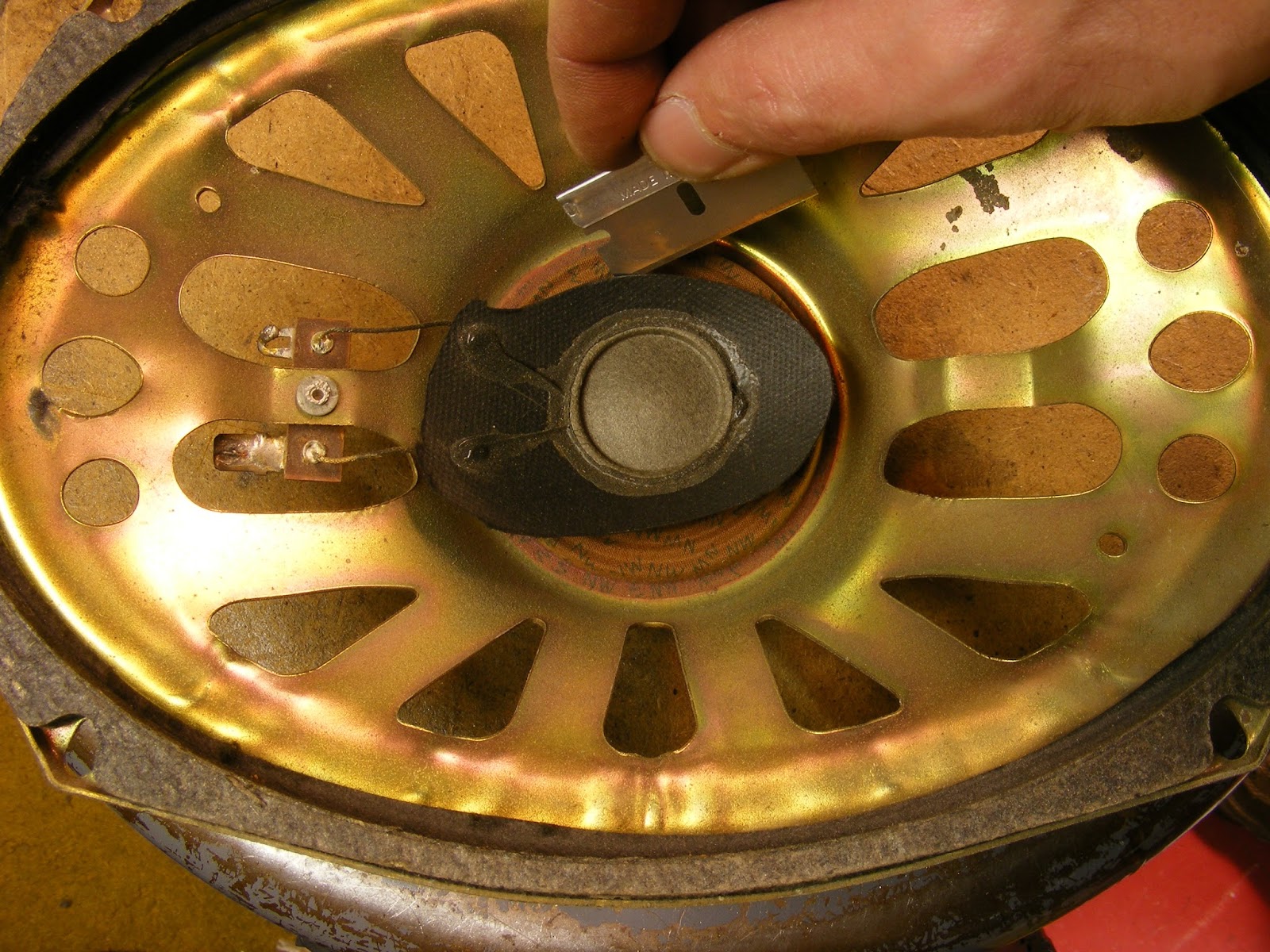

How to disembowel a speaker:
(the ionosonde way)
           1: Ripe out cone body. Use hobby knife to cut away cone right down to the dust cover.  "Making first incision"
           2: Cut away dust cover (being careful not to cut into the voice coil or the spider. DOING SO WILL RESULT IN COMPLETE DEATH. ) "nurse Mary, please hand me the forceps".
           3: Using what ever tool at your disposable, cut away speaker basket taking care not to cut away the connection terminals.(I used sheet metal nippers) "this limb needs to be removed, cut off saw nurse Mary"
           4: Remove terminals leaving the metal mounting tabs( I'll use these as the voice coil mounts) "O.K. sutcher up the patient nurse Mary - My bill will be in the mail"

Ah, the Chrysler Deluxe speaker.

1) Cut diaphragm out
2) Trim access.
3) Use sheet metal nippers or what ever is handy to cut housing
away from core.
4) Cut out dust cover
exposing voice coil.
5) Make linking shaft out of dowel rod.
6) Glue in place. Making sure
not to glue voice coil to magnet. BAD!

Attach !

 A few notes about the transducer installation. Depending on how firm your bowls are attached to the super structure, you may need to screw the tip of the linking shaft firmly onto the bowl. Drilling a small hole through the side of the bowl where the linking shaft will rest upon, screw the tip of the shaft through that hole to firmly hold it in place. This firm connection of the linking shaft to the side of the bowl will ensure better prorogation of sound energy into the bowl. Secondly, the 8 ohm impedance of this transducer is to little for mixer boards to handle. So I put in line a step up audio transformer which gives it a better match so more sound energy can flow through.

 Lastly, the pick-up's . Again I shall quote D.I.Y Plate Reverb
Piss...hey you....What if I told you that Radio Shack has had a secrete only known to musicians for many years. You would say to yourself, "Telegraphy your crazy!!", has you search through those pro-audio gear catalog's looking at $100+ acoustic pickups. Well just between you and me (and keep this on the down-low) Radio Shack sells pickups for $4.49 each. They don't label them as such but instead their called Piezo Elements 1500-3000 Hz model: 273 073  The sound quality of this devices are great for the price.
Taking those $4.49 acoustic pickups (Piezo Elements) out of their packages, I realized that these pickups didn't look like your average piezo element.Well for starters, the elements are buried inside a blast proof, geek proof, flame resistant, and radiation proof  -  black plastic case. To extract this rare element, you need a good sharp hobby knife, a screw driver, and most of all - patience. All you have to do is pry open the top with a screw driver (sounds easy enough. Boy are you in for a treat). Down inside of it's impregnable case is the piezo element. It's almost press fitted down in there, so your going to need a hobby knife to gently pry it loss.

Gluing the pick-ups on opposite sides of the "non-driven bowl" and then running the cabling from both pick-ups and driver transducer to a nice junction box with some 1/4 phone jack plugs. I can finally say it's done. Have another Ovoltine on me!

                                                                               Listen to the Harmonic reverb
